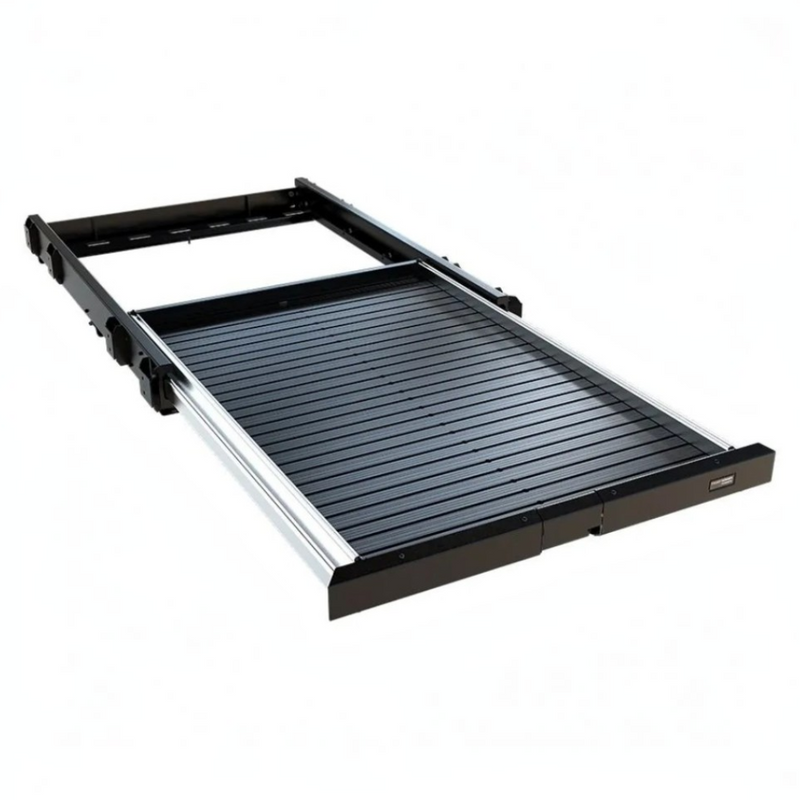

Front Runner Cargo Bed Slide / Medium

Gear Details

Consists of:
1 x Cargo Bed Slide Bottom Frame / Medium
1 x Cargo Bed Slide Tray / Medium
Fitting Instructions
Fitment Guide

• Improve access to your gear. Secure cargo, fridges and other accessories to the sliding deck, bringing your gear to you.
• Ergonomic handle allows for single handed operation.
• The sliding tray features a slat deck with the same t-slot pitch as your Front Runner Dometic roof rack to allow mounting of accessories such as Black Tie Down Rings / Eye Nuts; Wolf Pack Pro Rack Mounting Bracket / MKII or Adjustable Rack Cargo Chocks.
• The Cargo Slide / Medium installs into the Load Bed of your vehicle. Bolt through or riv-nut installation options are available.
• Drilling is required to secure the base of the Cargo Slide Bed / Medium to your Load Bed.
• Creates a loading area of 1402mm (L) x 893mm (W).
• The cargo load area sits 85mm high from load bed maximizing cargo space utilization.
• High strength nylon wheels and sealed bearings allows the tray to smoothly extend out 1070mm, 73% from the anchored base.
• Three (3) locking positions allow the slide to hold in place when open, in a partially open and closed position.
• Rated for an evenly distributed load of 350kg when being extended.
• Rated for an evenly distributed load of 500kg when locked in the closed position.
• Made of heat treated aluminum with anodized silver accents and mild steel ensures unmatched strength.
• Sealed in the same black powder-coating as Front Runner Dometic Racks to protect your Cargo Slide / Medium from the elements.
• The Cargo Bed Slide has exterior mounting points to secure additional accessories.
• The weatherproof design enables installation onto open Load Beds as well as Load Beds fitted with a Front Runner Pro Bed Rack, canopy, camper shell, or other style load bed cover.

Note: This cargo slide will only fit certain sized load beds. Please see SPECS for exact product measurements and to determine if this product is the right fit.

Note: If a bin liner is installed, removal of this liner may be needed for installation.

Product Dimensions:

Closed Dimensions:
1490mm (L) x 1100mm (W) x 140mm (H)

Internal Dimensions:
1402mm (L) x 893mm (W) x 40mm (H)
85mm (H) (from Load bed)

Weight:
58kg

Load Rating:
350kg
